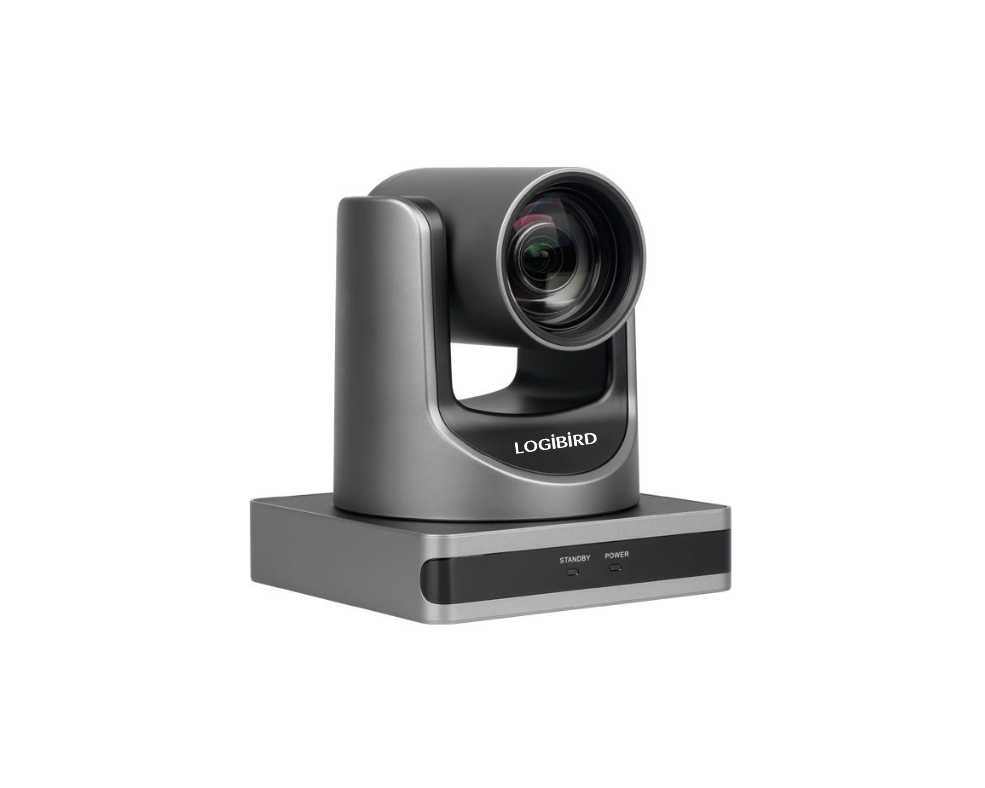

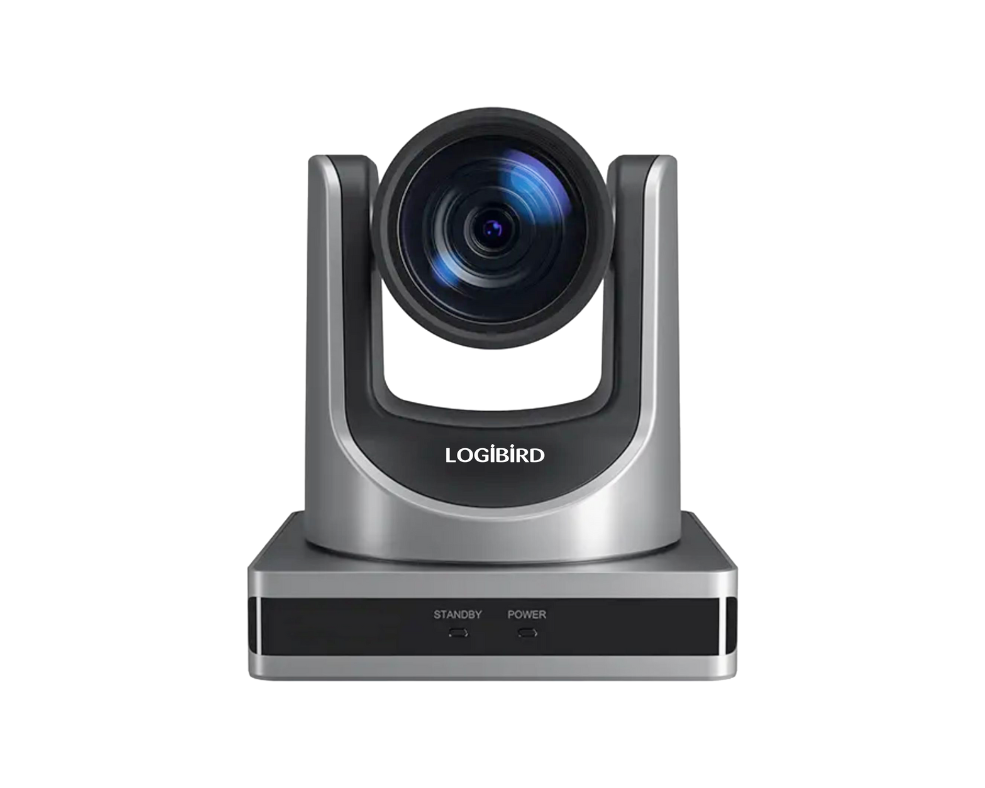

Logibird Video Conference PTZ Camera 12X Optical Zoom LB12U3H Plus Ai Human Tracking
1080P Video Conferencing PTZ Camera
The LB12U3H PLUS is built for businesses that need a cost-effective, high-quality video conferencing solution. Equipped with a next-gen 1/2.8-inch HD CMOS sensor, it delivers crystal-clear 1080P resolution, ensuring every detail in your meeting room is captured with precision
- Resolution: Full HD 1920×1080 @ 60fps
- Sensor: 1/2.8" CMOS, 2.07MP
- Optical Zoom: 12×
- Digital Zoom: 16×
- Lens: 3.5–42.3mm, F1.8–F2.8
- Horizontal FOV: 72.5°–6.9°
- Vertical FOV: 44.8°–3.9°
- Minimum Illumination: 0.5 Lux
- S/N: ≥55dB
- Noise Reduction: 2D + 3D DNR
- Pan: ±170°
- Tilt: -30° to +90°
- Pan Speed: 2.7°–35.7°/s
- Tilt Speed: 2.7°–31.5°/s
- Presets: 255, accuracy 0.1°
- USB: USB 3.0 Type-C, UVC 1.1
- HDMI: HDMI 1.4b

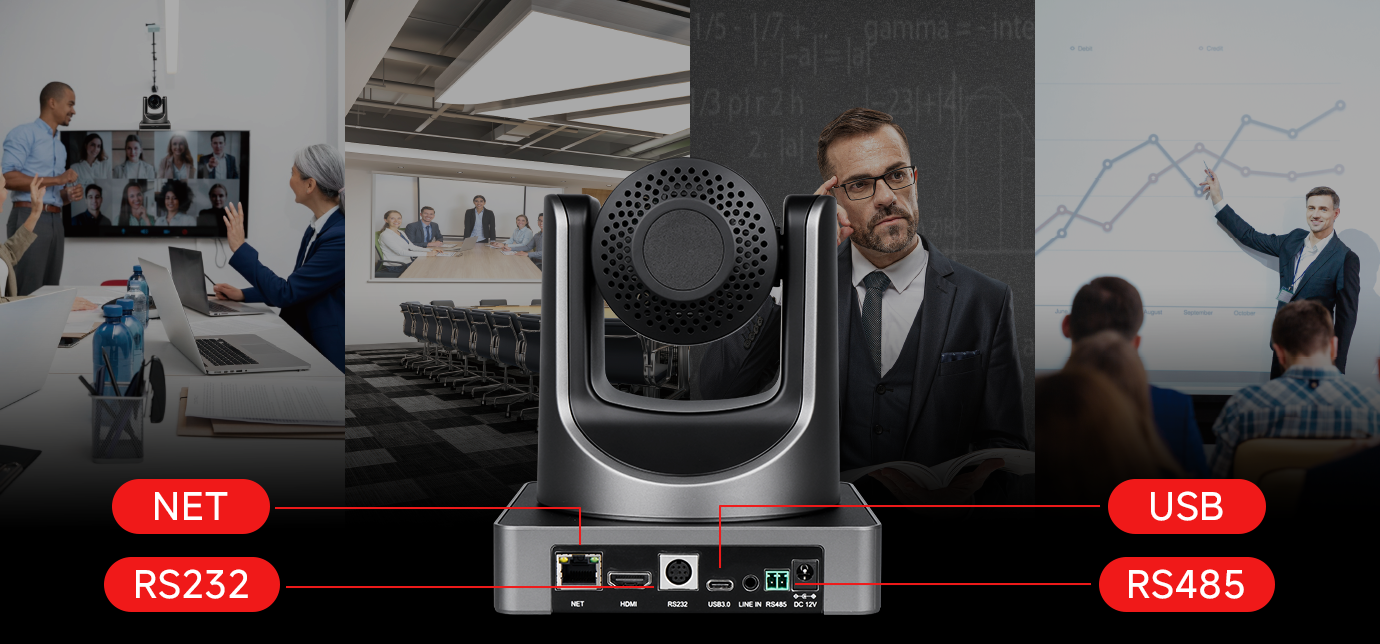

- Network: RJ45 10/100M Ethernet
- PoE: 802.3af supported
- Audio: 3.5mm line input
- Control: RS232 + RS485, VISCA / Pelco-D / Pelco-P
- Network Protocols: RTSP, RTMP, ONVIF, DHCP, SRT, Multicast
- Power: DC 12V / USB 5V / PoE
- Power Consumption: 12W
- Dimensions: approx. 144 × 144 × 168mm
- Weight: approx. 1.3k
- Ideal for: Video Conferencing • Smart Classrooms • Boardrooms • Online Teaching • Live Streaming
